4 Channel Car DVR Recorder Description

(1) trigger line and manual keys can select the image in any way 4-way camera

(2)In Trigger state, hand the keys effectively. When you press the manual key "Quad" of orbutton,

the trigger is invalid, Undo "QUAD" trigger to be effective

(3) After triggering undo, image delay three seconds, and enters the standby state.

(4) the trigger condition, no priority, when the trigger line when more than two trigger, then the trigger line

corresponding channel full-screen image,only three seconds, and then jumps automatically split image screen.

4 Channel Car DVR Recorder Details

the screen mode

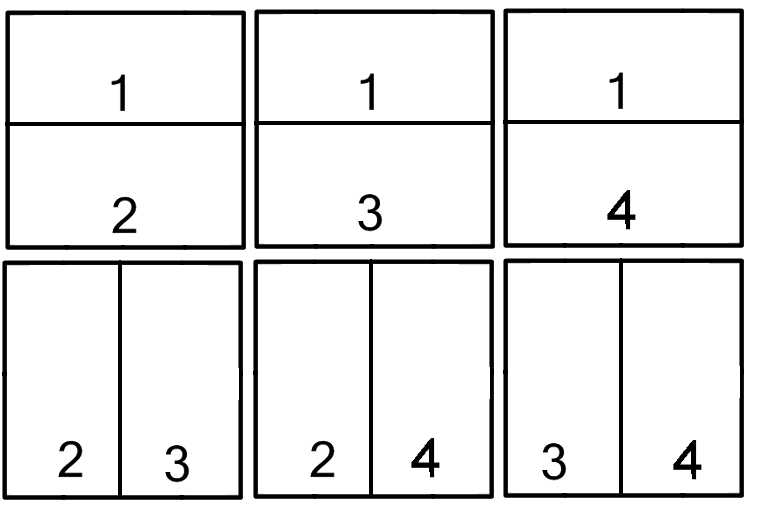

★Auto Mode introduces :( numbers represent the corresponding camera channel number, the channel number is not shown)

1. When connected to four cameras, camera work after the car starts, the screen automatically displays Quad mode, automatically shut down after a delay of 5 seconds.

1. When connected to three cameras, the camera work after the car starts, the screen automatically displays three Split mode, automatically shut down after a delay of 5 seconds.
2. When connected to two cameras, camera work after the car starts, the screen automatically displays Dual split mode, automatically shut down after a delay of 5 seconds.
3. Forward Looking trigger boot, depending on Full screen before the show, trigger an automatic shutdown of the exit delay 3 seconds.
4. After triggering a front or reverse power, turn left, turn left light trigger Full display screen for 3 seconds after the resumption of the automatic segmentation of video images.
5. After triggering a front or reverse power, turn right at lights, turn right trigger Full display screen for 3 seconds to return to automatic segmentation of video images.
6. Reverse trigger on, linked to reverse gear reversing Full screen display, shut down automatically after hanging reverse gear delayed for 3 seconds,

★On-off system and Manual mode introduced:

1. Short press or long press (more than 1 second) SMT button boot, showing automatic segmentation of images,again, a short press or for a long time to press the SMT button to shutdown, the system enters standby mode, but the system still in the recording.

2. long press the SMT button to boot, short press button to switch image mode.

★ Host box with high integration technology, four cameras centralized power supply box by the host, thereby greatly reducing the tedious wiring during installation, in addition to four cameras captured the image signal after the hosts converted by a video cable and the navigation DVD of "AV" port connection

Four-core trigger line description

Four-wire:

Line 1 (Green) is a front view of the trigger line, you can access the Front

Office assist lamp or other neutral switch,When triggered,

the system boot, revoked, the system standby

Line 2 (white) left, as the trigger line, then turn left at light positive

(when the electric pen test twinkling).When the trigger,

automatic full screen display,

Line 3 (yellow) to reverse the trigger line, then reversing light positive,

When triggered, the system boot, when withdrawn,

system standby,

Line 4 (blue) to the right, as the trigger lines (sparking when electric

pen test) then turn right at lights positive,When triggered,

automatic full screen
